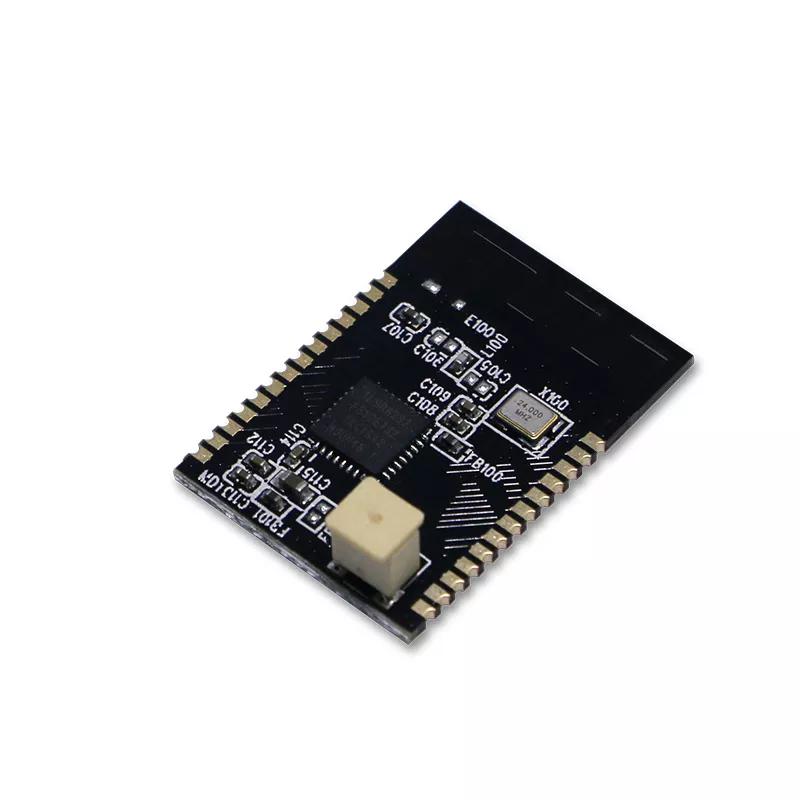

M-B14001, Bluetooth Module BLE 4.2 and BLE 5.0

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
M-B14001 BLE module is a compact size, high performance, low-power consumption, long range Bluetooth Module. This BLE 5.0 module uses an on-board antenna, with a variety of external interfaces, which can save your cost and debugging time, and maximizes the transmission distance.

  • DL-B14001
  • BLE4.2 & BLE5.0 available
  • BLE5.0
  • 1.9~3.6V

  • -92dBm @ 1Mbps mode


  • 150m
  • 26*18*4mm

Cost-effective Bluetooth Module with BLE 4.2 and BLE 5.0 both available




This M-B14001 BLE module is a compact size, high performance, low-power consumption, long range Bluetooth Module. It is a cost-effective BLE module uses an on-board antenna, which can save your cost and debugging time, and maximizes the transmission distance. This BLE Module has a variety of external interfaces, and users can quickly redevelop on the basis. It uses the two-in-one mode of Transparent Transmission and Beacon, and combines with APP to seamlessly locate indoors, it can be also upgraded over the air. This BLE Module can achieve positioning accuracy of about 0.5m with the help of APP, which can be widely used in various wireless communication fields of the IoT.


Main Features

Operating voltage: 1.9V~3.6V

Bluetooth version: BLE 4.2 and BLE 5.0 both available

Transmitting power: Max 8 ±1dBm

Receive sensitivity: -92dBm @ 1Mbps mode

Maximum distance: 150 meters (in open air)

Low power consumption:

Receiving current < 14mA,

Sleeping current < 10uA (Timer wakeup)




Technical Parameter

Description

Parameter

Remark

Min.

Typi.

Max.

Working Voltage (V)

1.9

3.3

3.6

/

Working Temperature (℃)

-40℃

/

80℃

/

Working Humidity

10


90

No condensation

Working Frequency (MHz)


2.4G


/

Power

consumption

Transmitting state (mA)

≤15mA

0dBm

Receiving state (mA)

≤14mA


Sleeping state (uA)

≤10uA

Timer wakeup

Transmitting power (dBm)

0

Programmable (user-defined)

Receiving sensitivity (dBm)

-92


Modulation

GMSK

/

Interface Type

UART/GPIO/I2C/ADC/SPI

/

communication protocol

BLE/Beacon

/

communication distance

Max 150m

In an open air

Dimension (mm)

18×26×2

PCB on-board antenna




Bu ürüne ilk yorumu siz yapın!

Pin

Interface Name

Function

1

RESETB

Reset, low level effective

2

GPIO8

I/O port

3

MCS/GPIO4

Default I/O port, multiplex SPI CS

4

MOSI/GPIO5

Default I/O port, multiplex SPI MOSI

5

MISO/GPIO6

Default I/O port, multiplex SPI MISO

6

MCLK/GPIO7

Default I/O port, multiplex SPI CLK

7

GPIO15

I/O port

8

SWS

Burner, NC (not connected)

9

GND

Grounding

10

GPIO9

I/O port

11

UART_CTS

UART_CTS

12

GPIO10

I/O port

13

UART_TX

Serial transmitting pin

14

UART_RX

Serial receiving pin

15

VDD

Power supply, 1.9V~3.6V

16

GND

Grounding

17

I2C_MCK

I2C CLK Pin

18

I2C_MSD

I2C Data Pin

19

GPIO11

I/O port

20

GPIO12

I/O port

21

PWM1/GPIO0

Default I/O port, multiplex PWM

22

PWM2/GPIO1

Default I/O port, multiplex PWM

23

UART_RTS

UART_RTS

24

ADC1/GPIO2

Default I/O port, multiplex ADC

25

ADC2/GPIO3

Default I/O port, multiplex ADC

26

GPIO13

I/O port

27

GPIO14

I/O port
