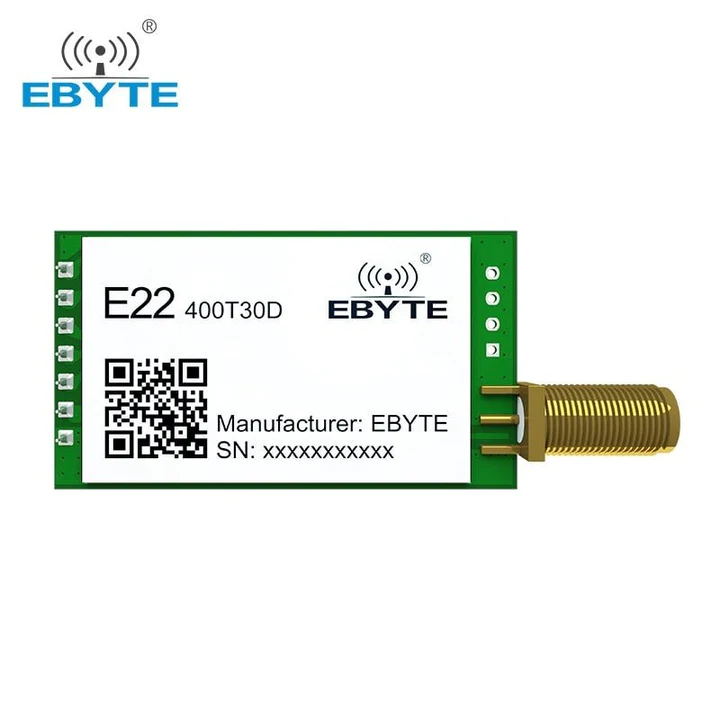

E22-400T30D -V2, 433MHz LoRa Module, SX1268, 30dBm, 8km, UART, DIP
Fiyat
15,00 USD + KDV
524,77 TL + KDV
The Ebyte E22-400T30D-V2 is a long-range wireless module powered by the SX1268 LoRa UART chipset. It operates in the 433MHz frequency spectrum, with a range up to 400m and enhanced signal penetration over other networks. The module is compatible with 3.3V and 5V IO ports, and can transmit data in multiple formats. Designed for optimal performance and versatility, the Ebyte E22-400T30D-V2 is a long-range wireless module equipped with the powerful SX1268 LoRa UART chipset. With an impressive range of up to 400m and superior signal penetration compared to other networks, this module operates in the 433MHz frequency spectrum and delivers reliable data transmission in various formats. Plus, its compatibility with both 3.3V and 5V IO ports makes it a versatile choice for a wide range of applications.
Type: Drive IC
Model Number: E22-400T30D-V2
is_customized: Yes
Package: SMD
Size: 24*43mm
Frequency: 410.125~493.125MHz
Power: 30dBm
Distance: 8km
Interface: UART
Package Type: DIP
Antenna Type: SMA-K
Voltage: 3.3-5.5V
Type: LoRa RF Module
Weight: 9.23g
| Main Parameters | Performance | Remarks | |
| Min. | Max | ||
| Power supply（V） | 0 | 5.5 | Voltage over 5.5V will cause permanentdamage to module |
| Blocking power（dBm） | - | 10 | Chances of burn is slim when modules areused in short distance |
| Operating temperature（℃） | -40 | 85 | / |
| Main Parameters | Performance | Remarks | ||
| Min. | Typ. | Max. | ||
| Operating voltage（V） | 3.3 | 5.0 | 5.5 | ≥5.0 V ensures output powerr |
| Communication level（V） | 3.3 | For 5V TTL, it may be at risk of burningdown | ||
| Operating temperature（℃） | -40 | - | 85 | Industrial design |
| Operating frequency（MHz） | 410.125 | - | 493.125 | Support ISM band |
| TX Current(mA) | 610 | Instant power consumption | ||
| RX current（mA） | 17 | |||
| Sleep current（μA） | 2 | Software is shut down | ||
| Max Tx power（dBm） | 29.5 | 30.0 | 30.5 | |
| Receiving sensitivity（dBm） | -146 | -147 | -148 | Air data rate is 2.4kbps |
| Air data rate（bps） | 0.3k | 2.4k | 62.5k | Controlled via user’s programming |
| Main parameter | Description | Remarks |
| Distance for reference | 8km | Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate: 2.4kbps |
| TX length | 240 Byte | Can be configured via command as 32/64/128/240 bytesper packet to transmit |
| Buffer | 1000 Byte | |
| Modulation | LoRa | |
| Communication interface | UART | |
| Package | DIP | |
| Connector | 1*7*2.54mm | |
| Size | 24*43mm | |
| Antenna | SMA-K | 50 ohm impedance |
