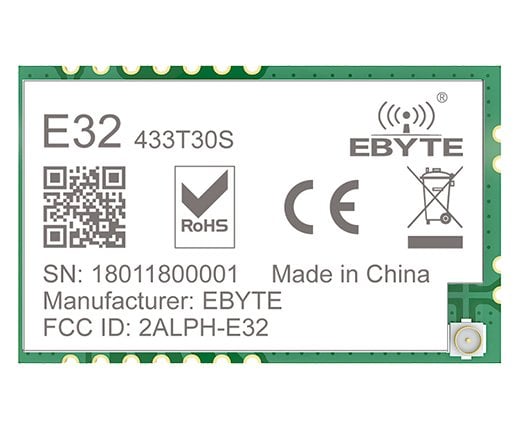

E32-T Serisi , LoRa RF Modül E32-433T30S
E32-433T30S
[IC] : SX1278
[Frequency] : 410~441MHz
[Power] : 21~30dBm
[Distance] : 8.0km
[Interface] : UART
[Weight] : 5.0±0.1g
[Introduction] : Based on originally imported RF IC SX1278 from SEMTECH, E32-433T30S is a SMD wireless module (UART) operates at 410-441MHz and features LoRa technology, data encryption & compression.
| Model | Interface | IC | Frequency Hz | Power dBm | Distance km | Air data rate | Package | Size (mm) | Feature | Manual |
| E32-400T20S3 | UART | SX1278 | 433M 470M | 20 | 3,0 | 0.3k~19.2k | SMD | 16 * 26 | LoRa spread spectrum | ✔ |
| E32-433T20DC | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | DIP | 21*36 | LoRa spread spectrum | ✔ |
| E32-433T20DT | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | DIP | 21*36 | LoRa spread spectrum | ✔ |
| E32-433T20S | UART | SX1278 | 433M | 20 | 5,0 | 2.4k～19.2k | SMD | 16 * 26 | LoRa Spread Spactrum Technology | ✔ |
| E32-433T20S1 | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | SMD | 17*25.5 | LoRa spread spectrum | ✔ |
| E32-433T20S2T | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | SMD | 17*30 | LoRa spread spectrum | ✔ |
| E32-433T27D | UART | SX1278 | 433M | 27 | 5.0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ✔ |
| E32-433T30D | UART | SX1278 | 433M | 30 | 8.0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ✔ |
| E32-433T30S | UART | SX1278 | 433M | 30 | 8.0 | 0.3k~19.2k | SMD | 25*40.5 | LoRa spread spectrum | ✔ |
| E32-868T20D | UART | SX1276 | 868M | 20 | 3.0 | 0.3k~19.2k | DIP | 21*36 | LoRa spread spectrum | ✔ |
| E32-868T20S | UART | SX1276 | 868M | 20 | 3,0 | 0.3k~19.2k | SMD | 16 * 26 | LoRa spread spectrum | ✔ |
| E32-868T30D | UART | SX1276 | 868M | 30 | 8.0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ✔ |
| E32-868T30S | UART | SX1276 | 868M | 30 | 8.0 | 0.3k~19.2k | DIP | 25*40.3 | LoRa spread spectrum Continuous transmiss | ✔ |
| E32-900T20S | UART | SX1276 | 868M 915M | 20 | 5,5 | 0.3k~19.2k | SMD | 16*26 | LoRa spread spectrum | ✔ |
| E32-900T30D | UART | SX1276 | 868M 915M | 30 | 8,0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ✔ |
| RF Parameter | Value |
Remark |
| Working frequency |
410~441 MHz |
Default: 433MHz |
| Transmitting power | 21~30 dBm |
Default: 30dBm（About 1W） |
| Receiving sensitivity | -147 dBm |
Air data rate: 0.3kbps |
| Air data rate | 0.3k~19.2kbps |
Default: 2.4kbps |
| Test distance | 8000 meter |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.4kbps |
| Hardware Parameter | Value |
Remark |
| Size |
25 * 40.3 mm |
|
| Antenna type | IPX/Stamp hole |
|
| Communication interface | UART |
Baud rate: 1200~115200, default: 9600 |
| Package | SMD |
|
| Buffer | 512 bytes buffer |
Automatically sub-packaging with 58 bytes per package |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply |
3.3 | 5.0 | 5.2 | V | |
| Communication level | 2.5 | 3.3 | 3.6 | V | |
| Transmitting current |
520 |
550 | 610 | mA | 30dBm（1W） |
| Receiving current | 22 |
23 | 25 | mA |
|
| Sleep current | 4 | 5 | 6 | μA | |
| Operating temperature |
-40 | 20 |
+85 | ℃ | |
| Operating humidity |
10 | 60 |
90 | % | |
| Storage temperature |
-40 | 20 |
+125 | ℃ |
| Pin No. |
Pin Item | Pin Direction | Pin Application |
| 1 | GND |
Input |
Ground |
| 2 | VCC |
Input |
Power supply ：3.3~ 5.5V DC |
| 3 | AUX | Output |
To indicate module ’ s working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as push-pull output (can be suspended). |
| 4 | TXD | Output |
TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output |
| 5 | RXD | Input |
TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input. Ground |
| 6 | M1 |
Input （weak pull-up） |
Work with M0 to decide 4 working modes of module (not suspended, if not used, could be grounded). |
| 7 | M0 |
Input （weak pull-up） |
Work with M1 to decide 4 working modes of module (not suspended, if not used, could be grounded). |
| 11 | ANT | output | High frequency signal output, 50 ohm characteristic impedance |
| 12 | GND | Ground | |
| 13 | GND | Ground | |
| 14 | GND | Ground | |
| 18 | PB0 | Input /Output |
NC PIN, This pin needs to be dangling and the user does not need to connect(for later extension use) |
| 19 | PB1 |
Input /Output |
NC PIN, This pin needs to be dangling and the user does not need to connect(for later extension use) |
| 20 | PB3 | Input /Output |
NC PIN, This pin needs to be dangling and the user does not need to connect(for later extension use) |
| 21 | +3.3V | Input |
Power pins for program loading (suspended, no need for user to connect) |
| 22 | SWIM | Input |
SWIM pin for program load (dangling, user does not need to connect) |
| 23 | GND | Input |
Ground pins for program loading (dangling, no user connection required) |
| 24 | RESET | Input | Reset pins for program loading (dangling, no need for user to connect) |
